Product Description

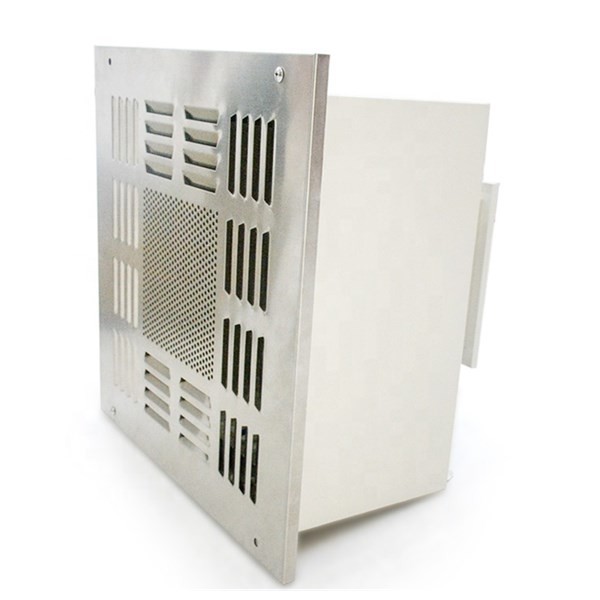

SS304 Frame HEPA Filter Boxes

Easy Installation Clean Workshop HEPA Filter Box With Airflow Control At Room Inside

Application: It is a replaceable HEPA unit , widely used in the technical field hospitals, pharmaceutical, semiconductor , LCD manufacturing,precision machinery, optical , etc. Body surface using electrostatic spray treatment, corrosion resistance, tank seal design further enhancesits uniqueness .

Frame: cold roll steel with coated/ SS304
Filter: Gel seal HEPA filter or mini pleat hepa filter,
supported and fixed by four sides press lock to facilitate the replacement
Air control: manual valve or actuator
Diffusing plate: coated cold steel/coated aluminum/SS304
EN 1822 efficiency: H14.U15
MPPS efficiency: H14: ≥99.995%
DOP efficiency: H14: ≥ 99.999%.
Recommended final pressure drop: 600 Pa.
Temperature: 70°C maximum in continuous service.
Test: 100% individually scanned to EN 1822.

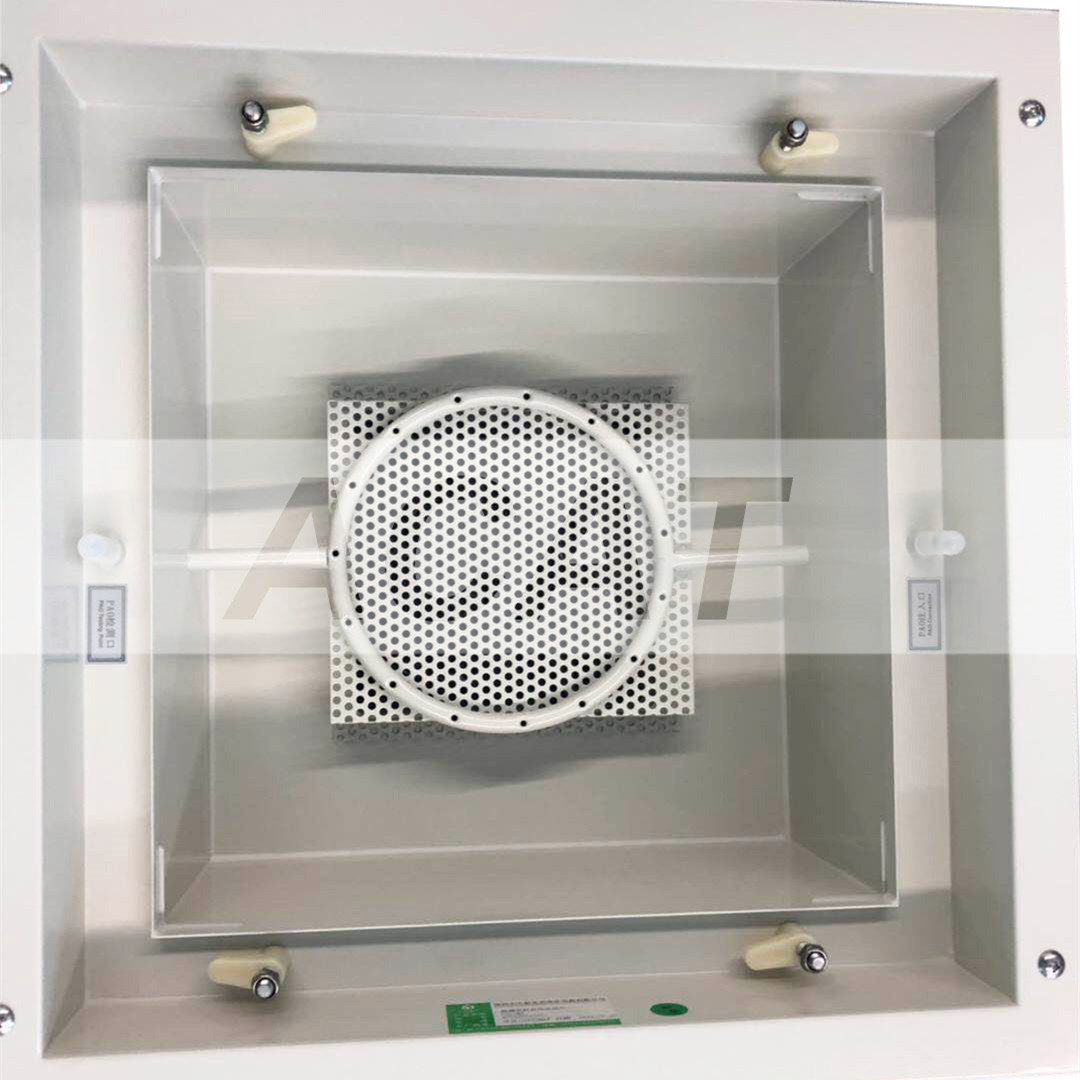

Mounting system: Mechanical clamping structure,
Optional: Butterfly regulating device for controlling the valve to adjust the amount of inlet air flow in clean room.
This device can be rotated directly from the bottom to control the valve which is connected by a metal screw between the butterfly valve, so that adjusting the interior air flow conveniently.

PAO Dust dispersing port, PAO upstream sampling test port. Ports are for testing air leakage for each HEPA box connected with testing device hose.

HEPA box for side gel seal HEPA filter

FILTER SIZE	HOUSING SIZE		FACE VELOCITY	AIR FLOW	Round duct size	square duct size	INITIAL D.P	EXTERNAL CASING SIZE
FILTER SIZE	TOP INLET	SIDE INLET	FACE VELOCITY	AIR FLOW	Round duct size	square duct size	INITIAL D.P	EXTERNAL CASING SIZE
L×W×H(mm)	L×W×H(mm)	L×W×H(mm)	m/s	m3/h	(mm)	L×W(mm)	PAOH13(Pa) (99.97%@0.3um)	L1L1H1(mm)
434×434×90	484×484×280	484×484×410	0.75	500	200	200×200	185	524524H+40
584×584×90	634×634×280	634×634×410	0.75	900	250	320×200	185	674674H+40
644×644×90	694×694×280	694×694×410	0.75	1100	300	320×250	185	734734H+40
949×644×90	999×694×280	999×694×410	0.75	1600	350	500×250	185	1039734H+40
1254×644×80	1304×694×280	1304×694×410	0.75	2200	400	600×200	185	1344734H+40

HEPA box for top seal HEPA filter

FILTER SIZE	HOUSING SIZE		FACE VELOCITY	AIR FLOW	Round duct size	square duct size	INITIAL D.P	EXTERNAL CASING SIZE
FILTER SIZE	TOP INLET	SIDE INLET	FACE VELOCITY	AIR FLOW	Round duct size	square duct size	INITIAL D.P	EXTERNAL CASING SIZE
L×W×H(mm)	L×W×H(mm)	L×W×H(mm)	m/s	m3/h	(mm)	L×W(mm)	PAOH13(Pa) (99.97%@0.3um)	L1L1H1(mm)
400×400×95	450×450×280	450×450×410	0.75	500	200	200×200	185	490490H+40
550×550×95	600×600×280	600×600×410	0.75	900	250	320×200	185	640640H+40
610×610×95	660×660×280	660×660×410	0.75	1100	300	320×250	185	700700H+40
915×610×95	965×660×280	965×660×410	0.75	1600	350	500×250	185	1005700H+40
1220×610×95	1270×660×280	1270×660×410	0.75	2200	400	600×200	185	1310700H+40
