Product Details:
|
|
| Place of Origin: | china |
|---|---|
| Brand Name: | alphaclean |
| Model Number: | 24*24*2" |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 pc |
| Price: | negotiation |
| Packaging Details: | Polywood packing |
| Delivery Time: | 10 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000pcs |
|
Detail Information |
|||
| Construction: | Panel Filter | Efficiency: | G4 |
|---|---|---|---|
| Medium Material: | Filament Glass Fibres | Thickness: | 10/15/21/25/30/40/46/50/69/76/80/90/96MM |
| Frame: | Aluminum Or Galvanized | Color: | Green And White |
| Highlight: | Spray Booth Exhaust Filter,Arrestor Exhaust Air Filter,Fiberglass Paintstop Floor Filter |
||
Product Description

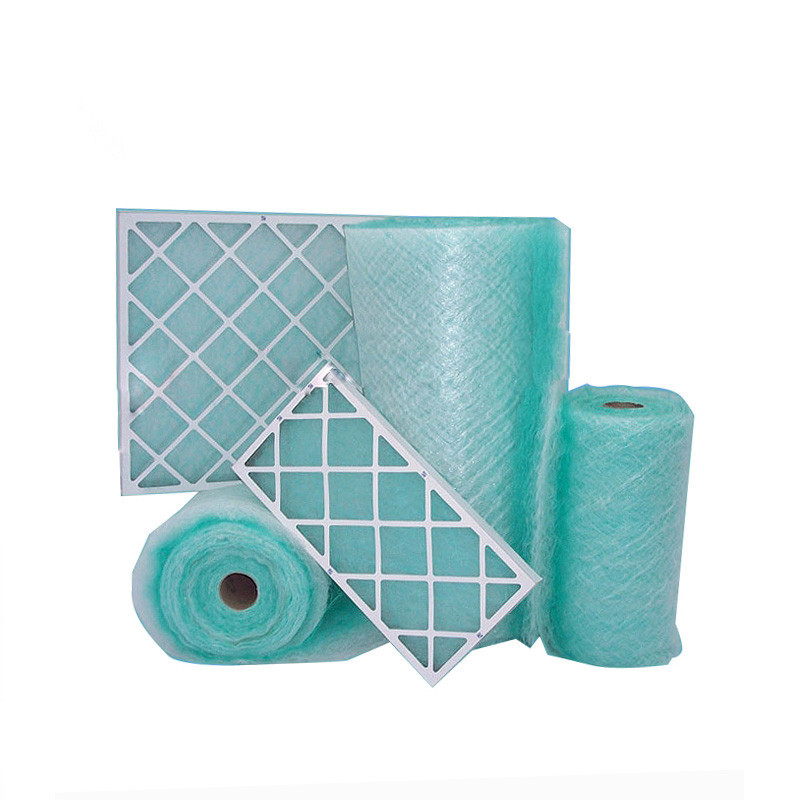

Fiberglass Paintstop Arrestor Spray Booth Exhaust Filter Low Resistance
Fiberglass Paintstop Low Resistance Floor Filter Media Paint Arrestor For Spraybooth Exhaust Filter
It is used in heat recovery systems and high-quality paint mist filtration of surface coating with the high rate of capturing particles and long life-cycle.
The inlet side is green, outlet side is white with good compressibility properties to ensure its stability and strong nature and to ensure that filter is not loose, scattered, and more conducive to store mist and dust.
the pads are also made with an exclusive two stage density ,consisting of an open weave fibre pattern.
on the air entering side and a tighter weave on the air leaving side .this unique construction permits use of the full depth of the pad,

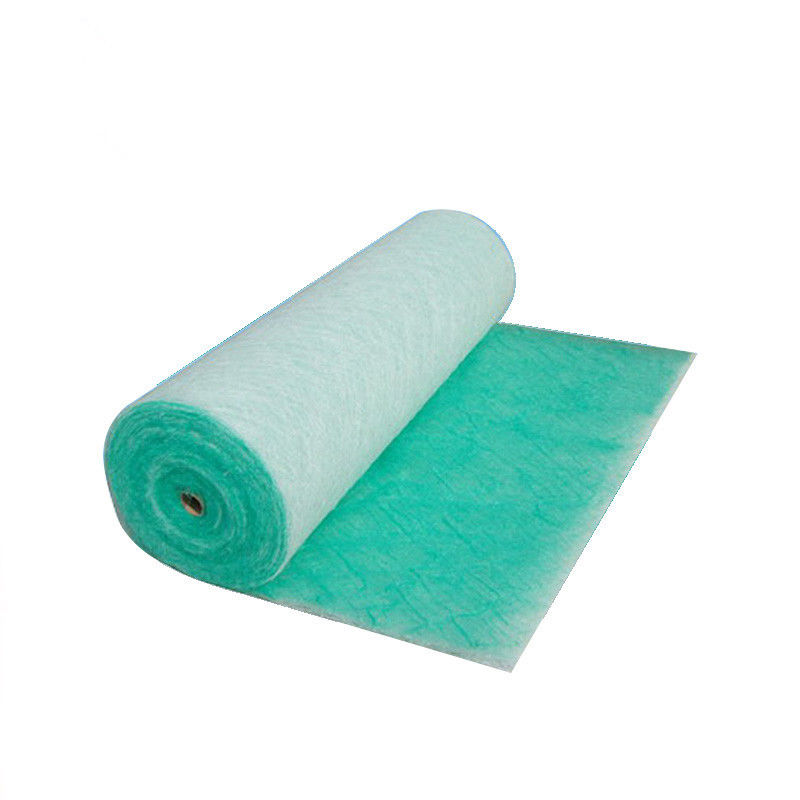

the media is supplied in rolls or pre cut pads, or we can provided with a metal frame to hold.
Temperature resistance: 170 ℃
Conforming to the European DIN53438-F1
The average mist capturing rate: 90-98%
customized size is available.
| Model | Specification | Specific surface area(1/ m) | ||
| A | B | C | ||
| FHF01 | 254 | 394 | 50 | 680 +- 5% |
| FHF02 | 254 | 495 | 50 | 680 +- 5% |
| FHF03 | 305 | 495 | 50 | 680 +- 5% |
| FHF04 | 381 | 457 | 50 | 680 +- 5% |
| FHF05 | 394 | 495 | 50 | 680 +- 5% |
| FHF06 | 394 | 622 | 50 | 680 +- 5% |
| FHF07 | 455 | 380 | 50 | 680 +- 5% |
| FHF08 | 495 | 395 | 50 | 680 +- 5% |
| FHF09 | 495 | 495 | 50 | 680 +- 5% |
| FHF10 | 495 | 622 | 50 | 680 +- 5% |
