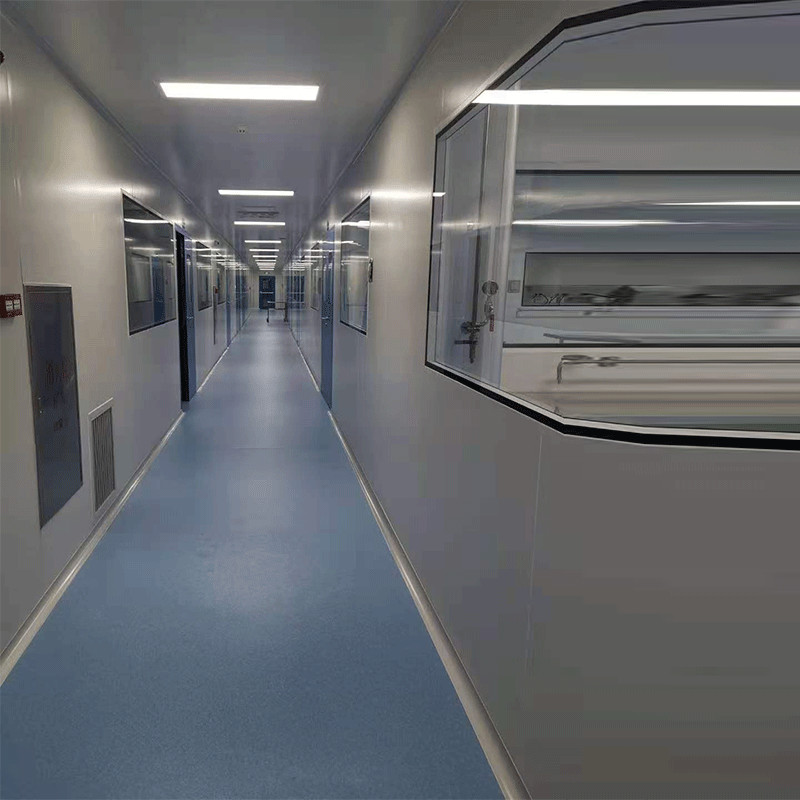

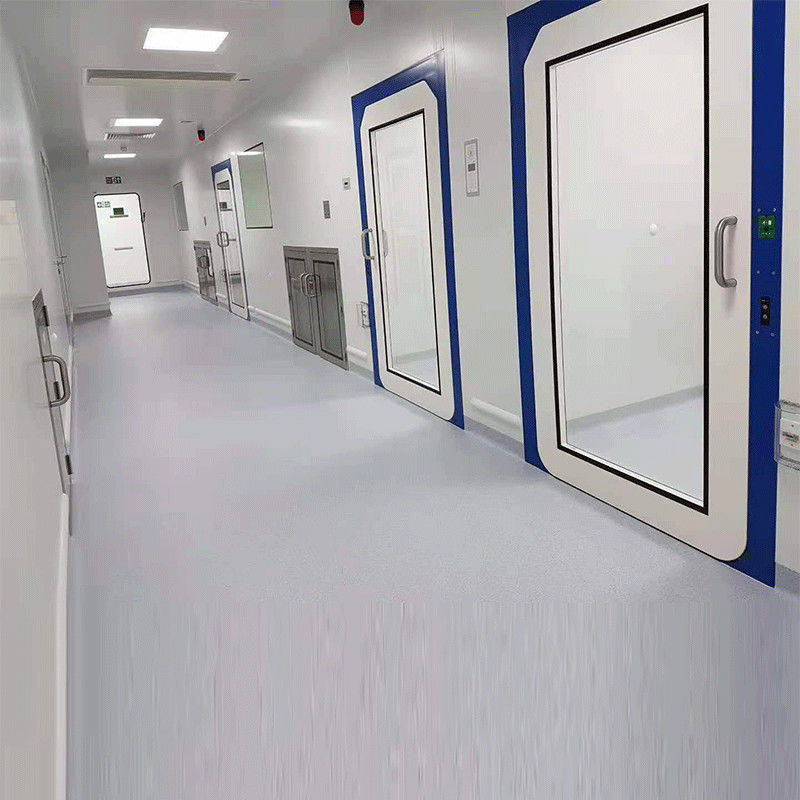

HVAC Pharma ISO Clean Rooms

Product Description

HVAC Pharma ISO Clean Rooms

Class 10 Dust-Free Clean Room Workshop

The Class level 10 clean room dust-free workshop standard is based on "the number of dust particles with a diameter greater than or equal to 0.5um per cubic meter of air" as a measure of the cleanliness of the device. "Ten-level dust-free workshop" means that the number of dust particles with a diameter greater than or equal to 0.5um in each cubic of air is less than 10.

HVAC System for china modular clean room turnkey for pharmaceutical factory

HVAC design and room data: according to ISO14644-1 and CFR209E cleanliness class

Chiller system:

- Air cooling chiller

- Water cooling chiller

Air handling unit (AHU)

• Humidifier or dehumidifier

• Air supply ducts

• HEPA filter box

• Air return and air exhaust ducts

• Diffuser, grills , valves, damper and louver, fan etc

The c project is mainly composed of the following systems:

air filtration system, environmental monitoring system, fire alarm system, people flow system, process piping system, power system, lighting system, maintenance structure and electrostatic ground treatment systems. The air-conditioning purification system project includes the entire equipment, equipment matching and construction installation.
