Product Details:
|
|
| Place of Origin: | china |
|---|---|
| Brand Name: | alphaclean |
| Model Number: | 24*24" |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 pc |
| Price: | negotiation |
| Packaging Details: | Polywood packing |
| Delivery Time: | 10 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000pcs |
|
Detail Information |
|||
| Size: | 595 * 595 * 500 | Color: | Green Pink Yellow White Orange |
|---|---|---|---|
| Material Of Bag: | Non-woven,Synthetic Fiber | Product Name: | Primary Pocket Air Filter |
| Frame: | Aluminum Or Galvanized | Application: | Industrial Commercial Ventilation System,Electronic,hospital,power Plant |
| Material: | Meltblown And Fabric | Porosity: | 1-5um |
| Air Flow: | 3200 M3/h | Initial Resistance: | 60 Pa |
| Highlight: | Meltblown Pocket Air Filters,EU4 Pocket Air Filters,Synthetic Fiber EU4 Filter |
||

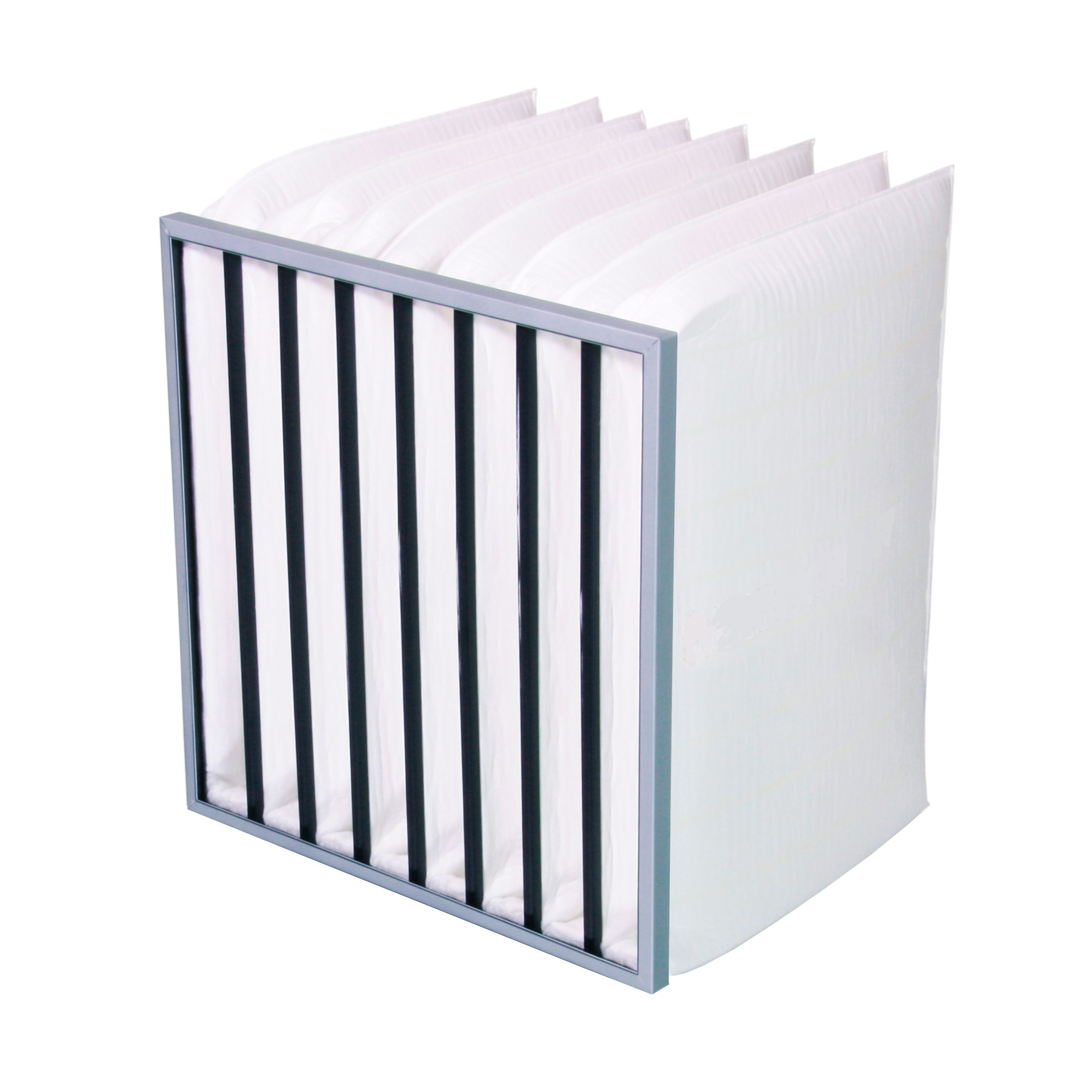

Product Description
EU2 EU3 EU4 Primary Synthetic Fiber Meltblown Pocket Air Filte
G2, G3, G4 EU2 EU3 EU4 Primary Pocket Filter
Used for clean room conditioning system ,pre-filtration through fresh air venting units ,and exterior air conditioning connection
Primary filtration of central air conditioning system
Pre filtration at the inlet of air purification equipment
Pre filtration in a medium filter
Primary filtration or secondary filtration in a filter system
Product features:

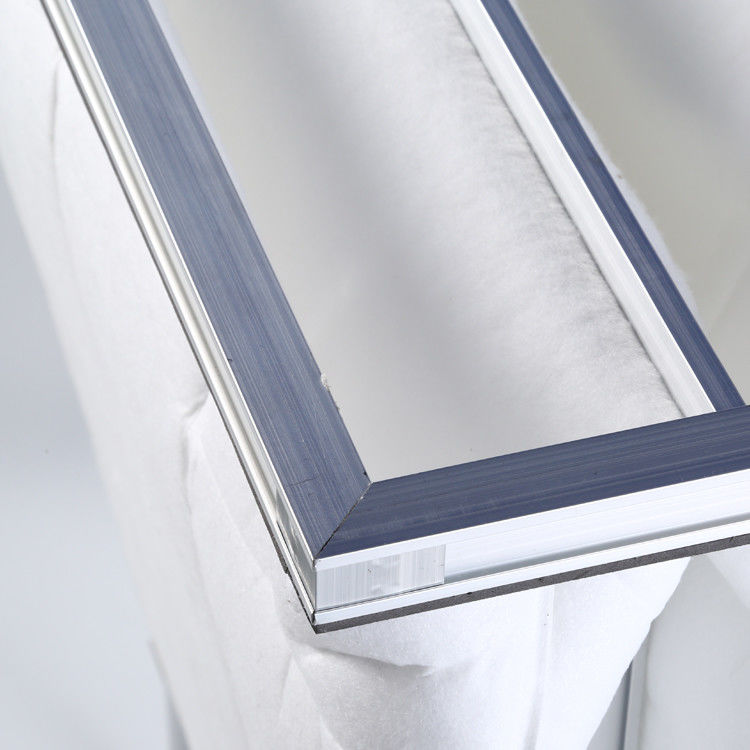

Solid all-metal frame structure
High quality fluffy multi-layer synthetic fiber filter paper,nonwoven fiber within meltbrown layer inside
High dust holding capacity, low resistance (300-400g/m2)
Ultrasonic seamless close-fitting bag structure
Type: pocket
Frame: Standard galvanised mild steel (GI) or aluminum or stainless steel
Media wide : synthetic fiber
Ribs: galvanized steel strip
Connection angle: solid, high temperature resistant ABS plastic angle / aluminum alloy angle
optional thickness of frame: 20mm / 21mm / 26mm / 47mm
EN779:2002 Efficiency : G2 ,G3 ,G4 EN779 EU2,EU3,EU4 Eurovent
Color: white
Recommend final pressure drop: 300 pa
Temperature: 70C maximum in continuous service.
Optional: Alternative frame materials and size available on request.
| Model | Outside Dimensions | Rated Air Flow | Pressure Drop (pa) | Pockets | |
| CXD | 595×595×600mm | 3400 / 4200 | 40 | 60 | 6 |
| CXD | 495×595×600mm | 1700 / 2100 | 40 | 60 | 3 |
