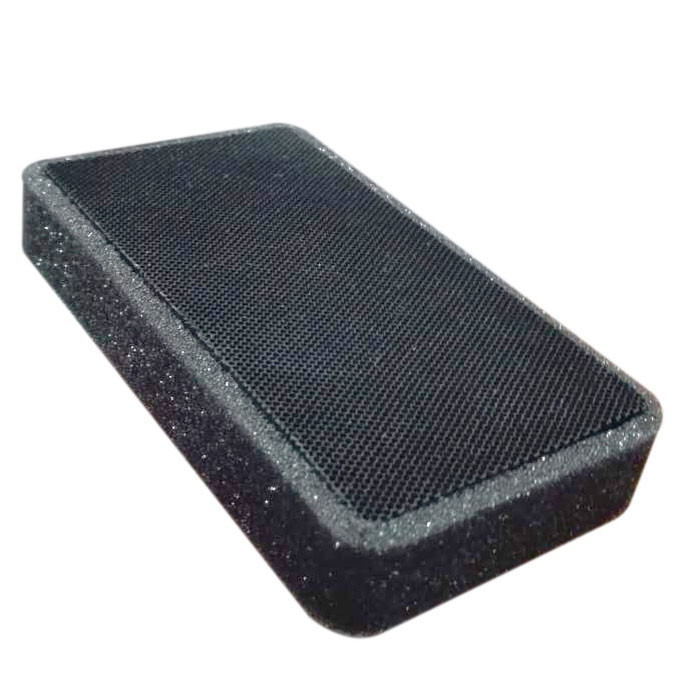

Monofilament 0.4mm Printer Copier 210 Mesh Ozone Air Purifier

Product Description

Monofilament 0.4mm Printer Copier 210 Mesh Ozone Air Purifier

Ozone Filter For Printer Copier Medical Equipment Ozone Elimination Module

The ozone decomposition series filter is made by supporting metal catalyst (manganese oxide and rare earth) on honeycomb aluminum and activated by high temperature. When ozone comes into contact with the catalyst, it can instantly be converted into oxygen, which is currently an excellent and rapid method for decomposing ozone.


The hole is regular, so as to obtain a smaller wind resistance;

The high specific surface area of ​​the honeycomb, high-efficiency ozone decomposition can be realized;

Free sample, customized is availabe.

working principle:
1) Decompose ozone O3, reduce it to oxygen O2, and produce no toxic substances;
2) Ozone decomposer is a kind of catalyst. When ozone comes into contact with the catalyst on the surface of the filter, it will accelerate the process of reduction to oxygen.

Specification	Product structure	Description				Common thickness	Remark
Holes/sq.inch		H(mm)	T(mm)	A(mm)	Specific surface area(1/m)	T= mm
400		2.6	1.2	/	2800	10.0/15.0/20.0	Common
600		2.2	1.0	/	3600	10.0/15.0/20.0	Common
30		/	/	0.8	2900	10.0/15.0/20.0	common
600		/	/	0.6	3800	10.0/15.0/20.0
900		/	/	0.5	4600	10.0/15.0/20.0
1200		/	/	0.45	5100	10.0/15.0/20.0
