220V Laminar Air Flow Laboratory Thick 1.2mm Steel Fume Hood

Product Description

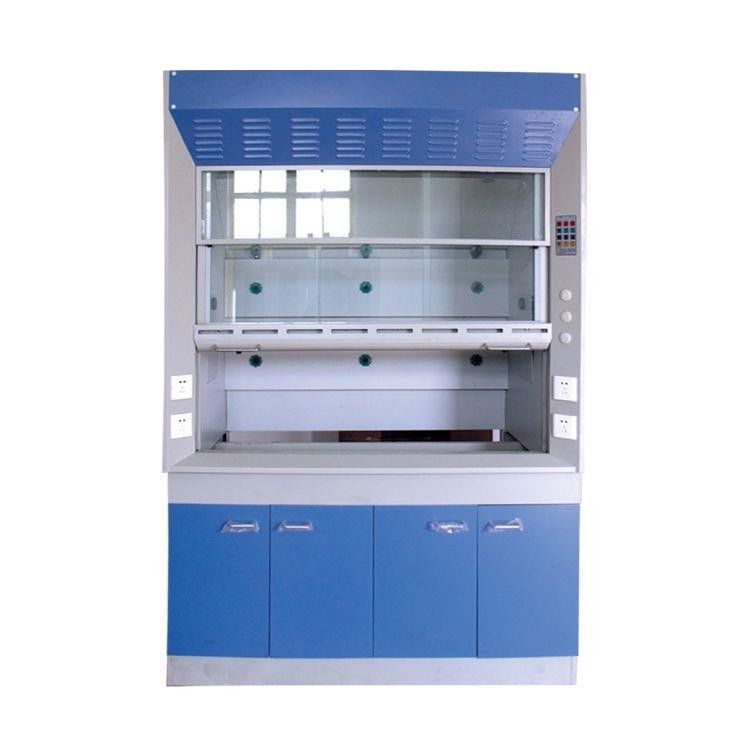

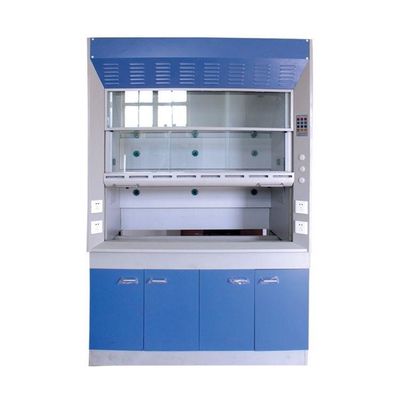

220V Laminar Air Flow Laboratory Thick 1.2mm Steel Fume Hood

All Steel Laboratory Fume Hood

Fume hood: (all steel) shell description: the shell is made of 1.2mm thick high-quality cold-rolled steel plate in the CNC machining center, cut, positioned, punched, bent and welded, and then formed after pickling and phosphating treatment with epoxy resin powder sprayed at high temperature. Curing. High adhesion and beautiful appearance.

Inner shell description: 5mm gray anti-fold special board, special material for laboratory. It is equipped with detachable maintenance holes for easy maintenance of circuits, water circuits and air circuits. Operating table description: 12.7mm solid core physical and chemical board table top, acid and alkali resistance, chemical solvent corrosion resistance, non-toxic, and long service life.

Fluorescent lamp description: The fluorescent lamp is hidden on the top, not in contact with the airflow in the fume hood, and easy to replace. It uses a 30W fluorescent lamp and is equipped with 5mm tempered glass. Or optional explosion-proof lamp.

Handle description: stainless steel handle. Guide plate description: adopt 5mm anti-fold special board, special material for laboratory. Power description: Multifunctional splash-proof power socket is adopted.

Window description: pvc plastic profile frame, the window adopts tempered glass, and adopts a stepless balance device, which can be moved up and down and adjusted freely.

Adjusting foot description: The diameter of the adjusting foot is φ10mm, the height of the cabinet can be adjusted appropriately according to the indoor floor, and the maximum adjustment is 0-30mm.

Description of gas hood: It is made of PP material, one-piece molding, acid and alkali resistance, and corrosion resistance. Description of distribution box: Comply with 220V and 380V power supply requirements, with motor protection device.

Control switch description: 12V LCD touch switch, centralized control of the entire circuit system.

Process description: All steel plates are welded by epoxy resin powder, and they are visually smooth and have no solder joints. All water, electricity, and gas circuits are required to be safe, applicable, and concealed installation.

Maintenance holes are provided on both sides of the cabinet to facilitate maintenance and security inspection.
